The dimensions below assume the use of a 1920x1080 computer monitor, no zoom, and Three Color Design turned on in a Brand.
This article covers image dimensions in the following areas:
Design
- Site Logo
- Favicon
- Dashboard Header Image
- Default Avatar Image
- Login Page Background Image
- Default Course Category Cover Image
- Default Event Cover Image
Content Creation
Learning
Social
Website
Design

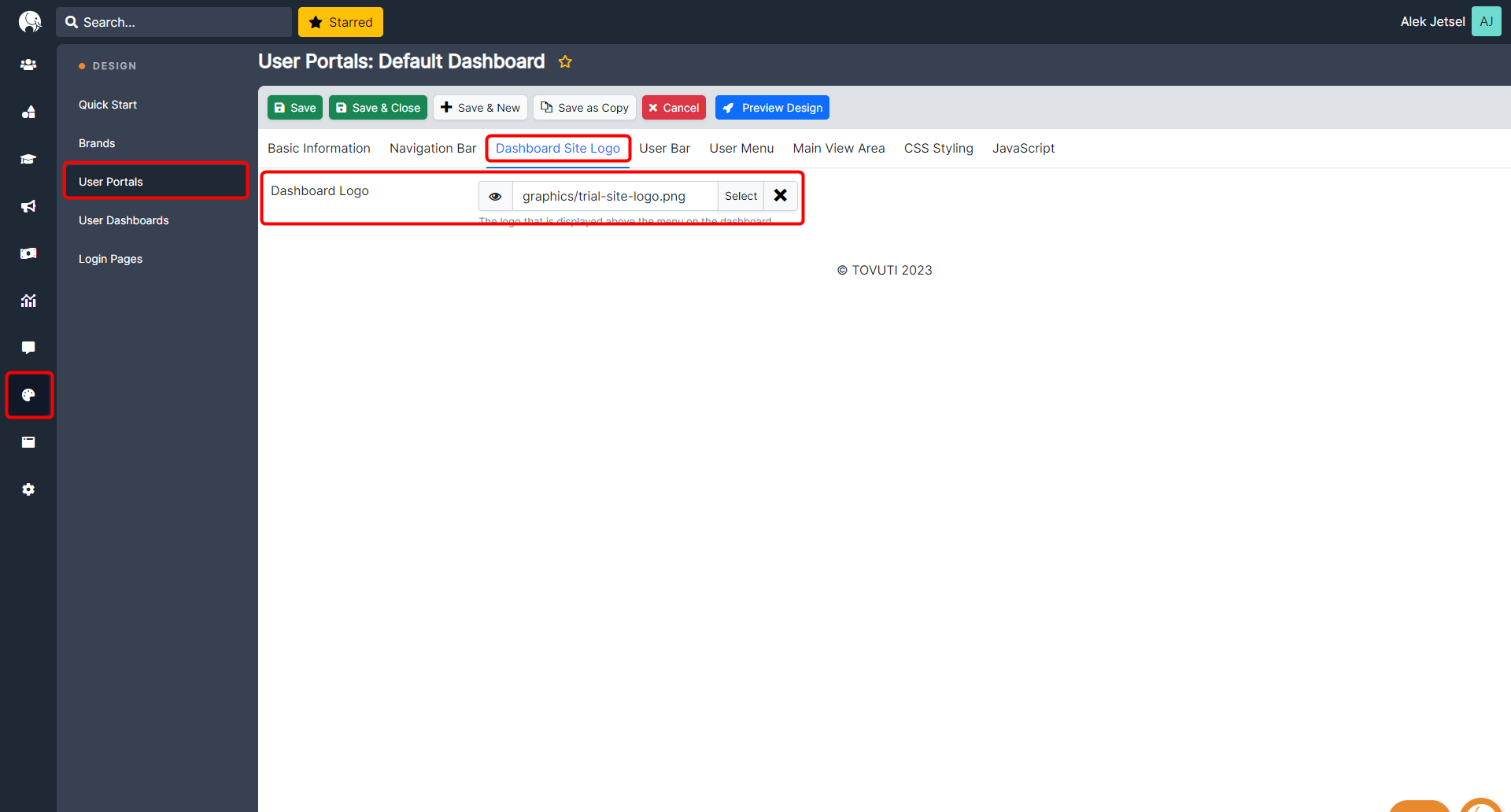

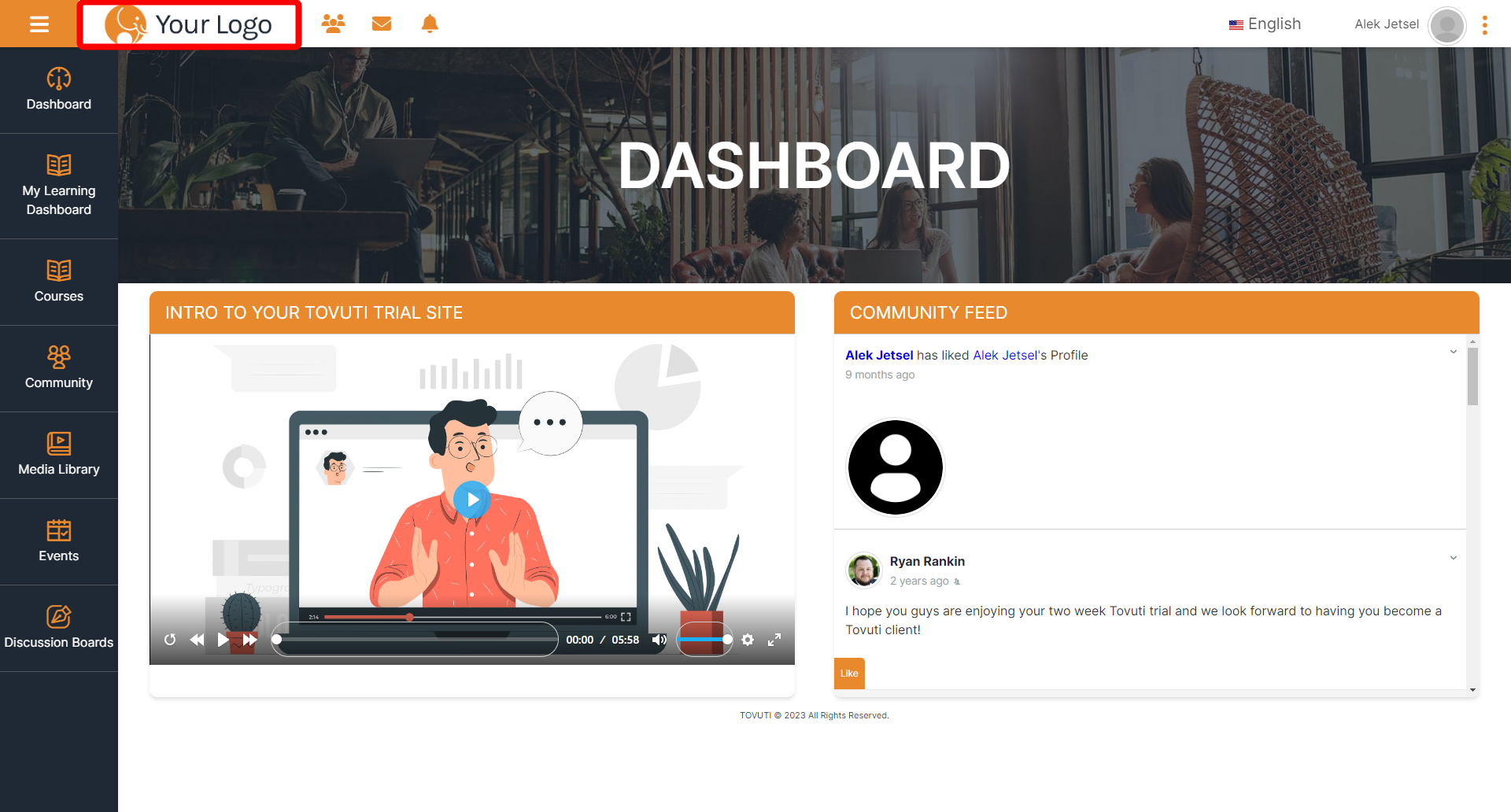

Site Logo
Either 70 x 70 or 100 x 70
User Portal:

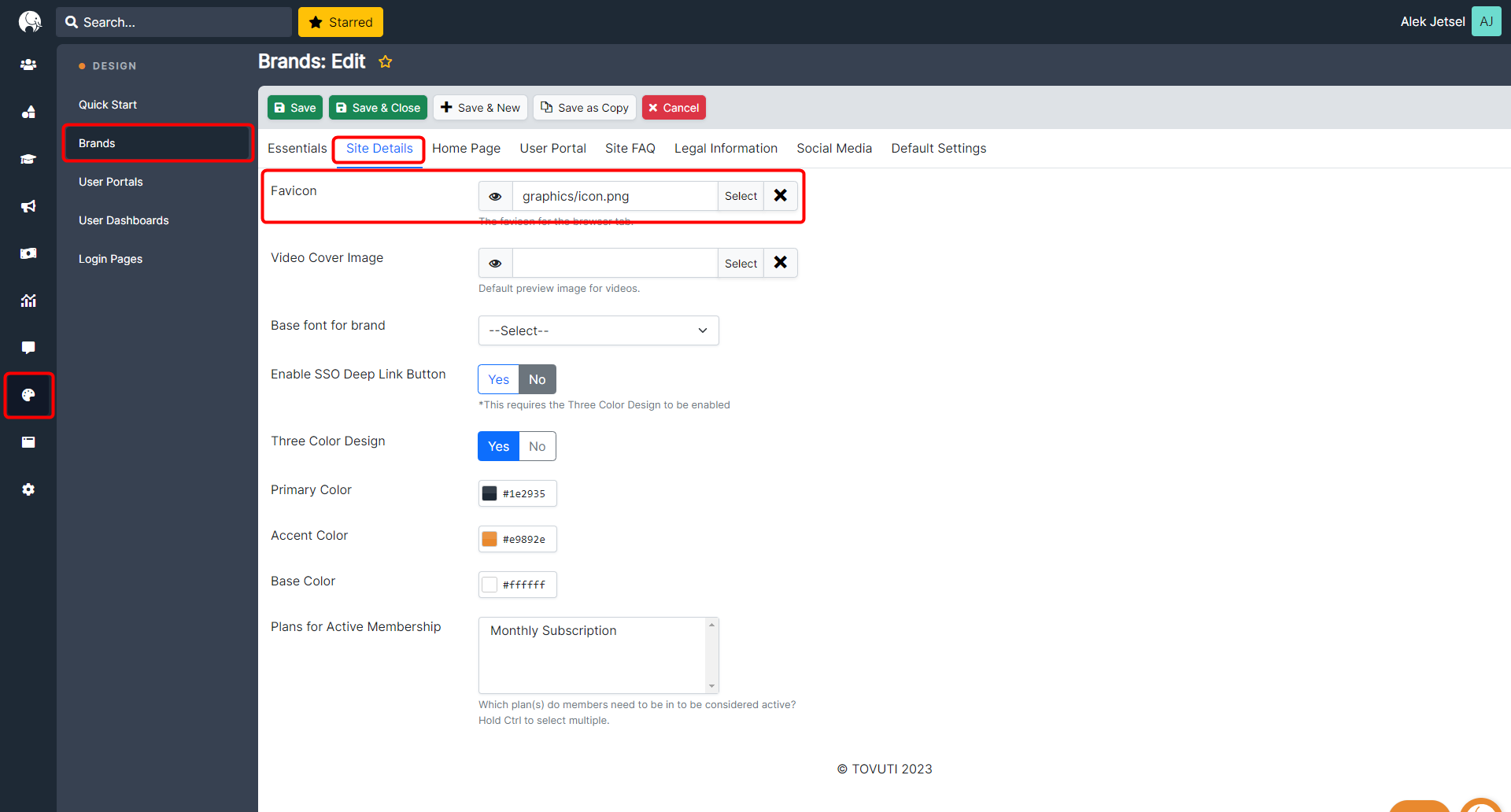

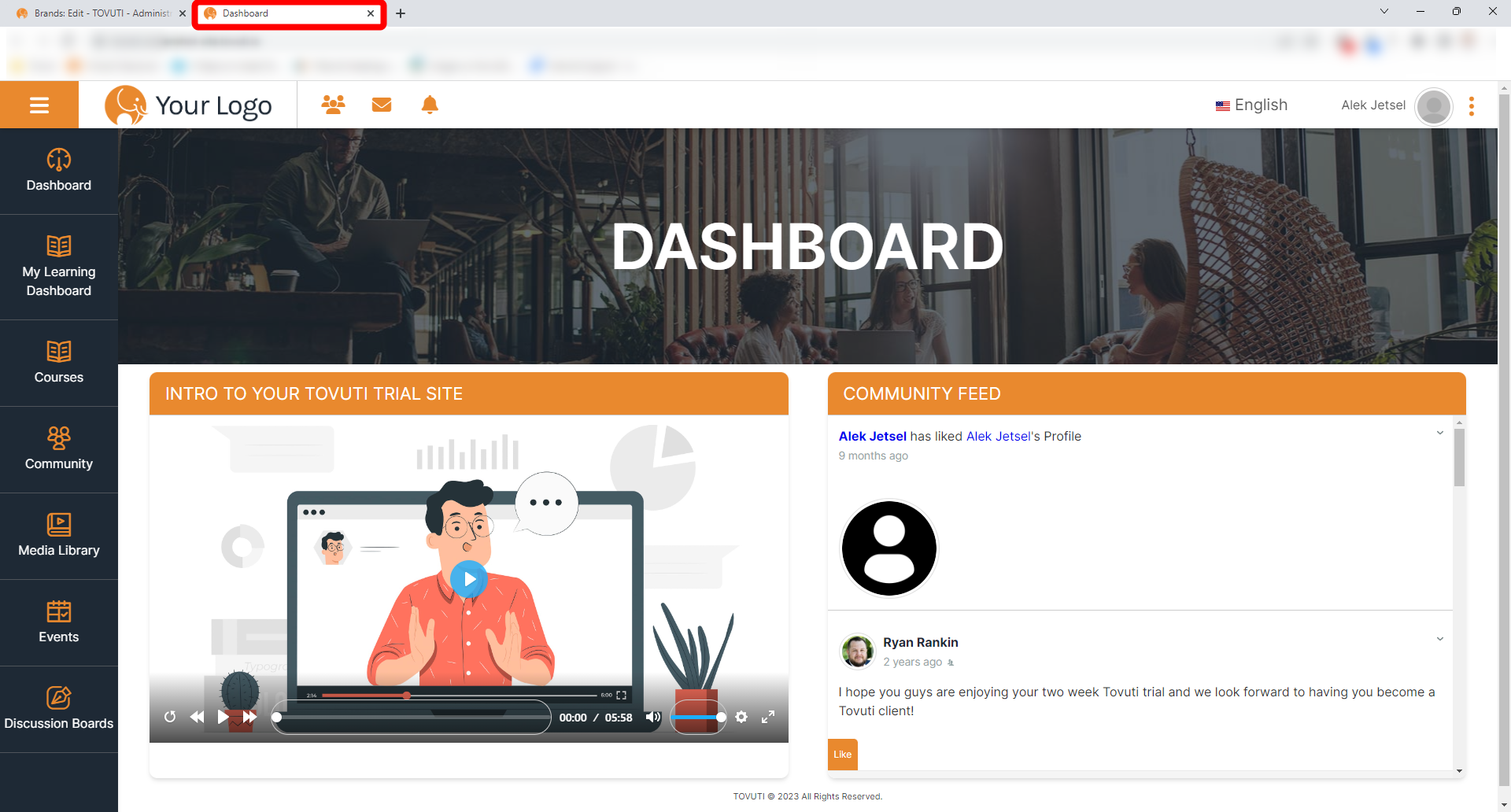

Favicon
32 x 32
User Portal:

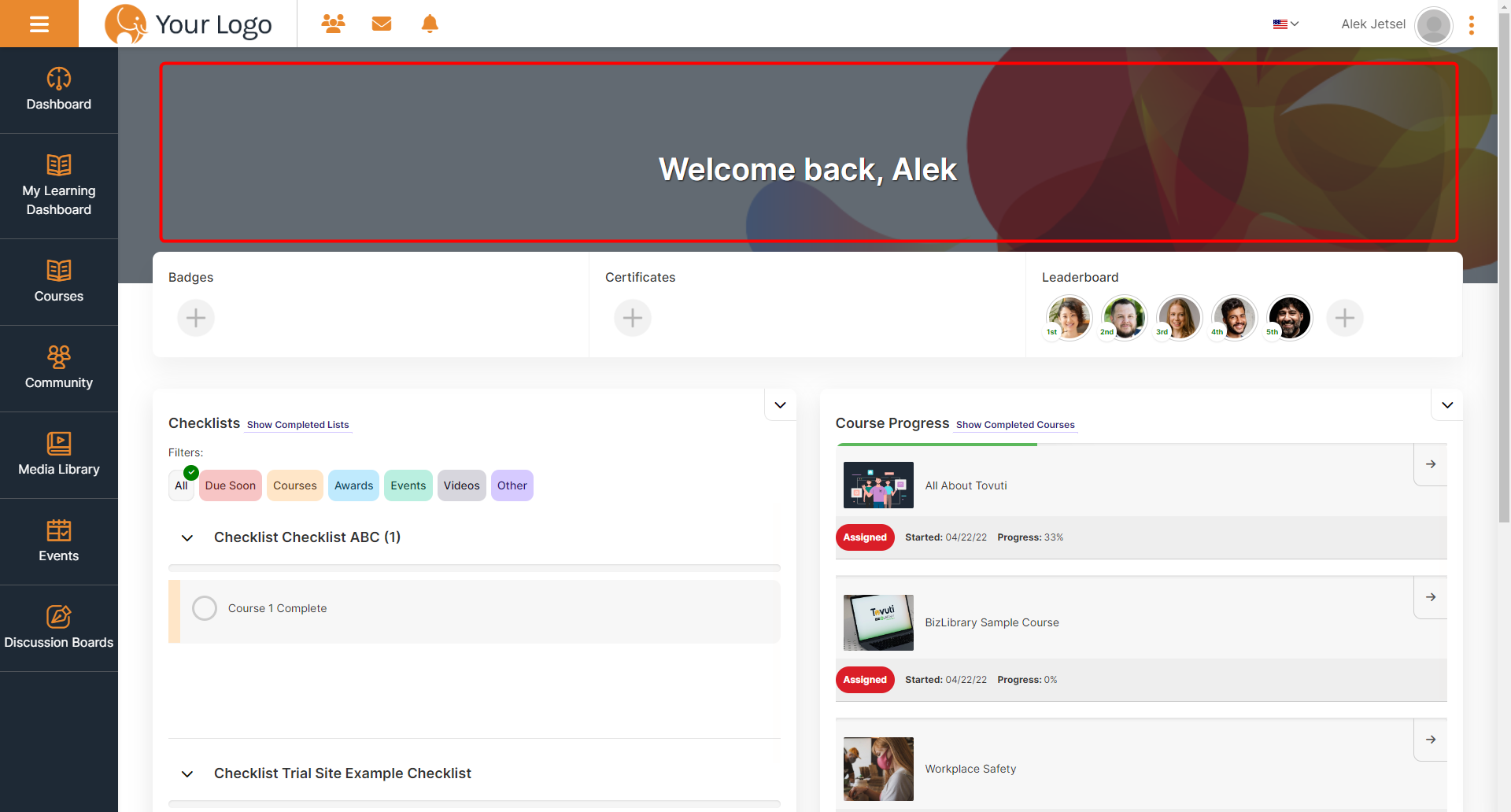

Dashboard Header Image
1700 x 300
User Portal:

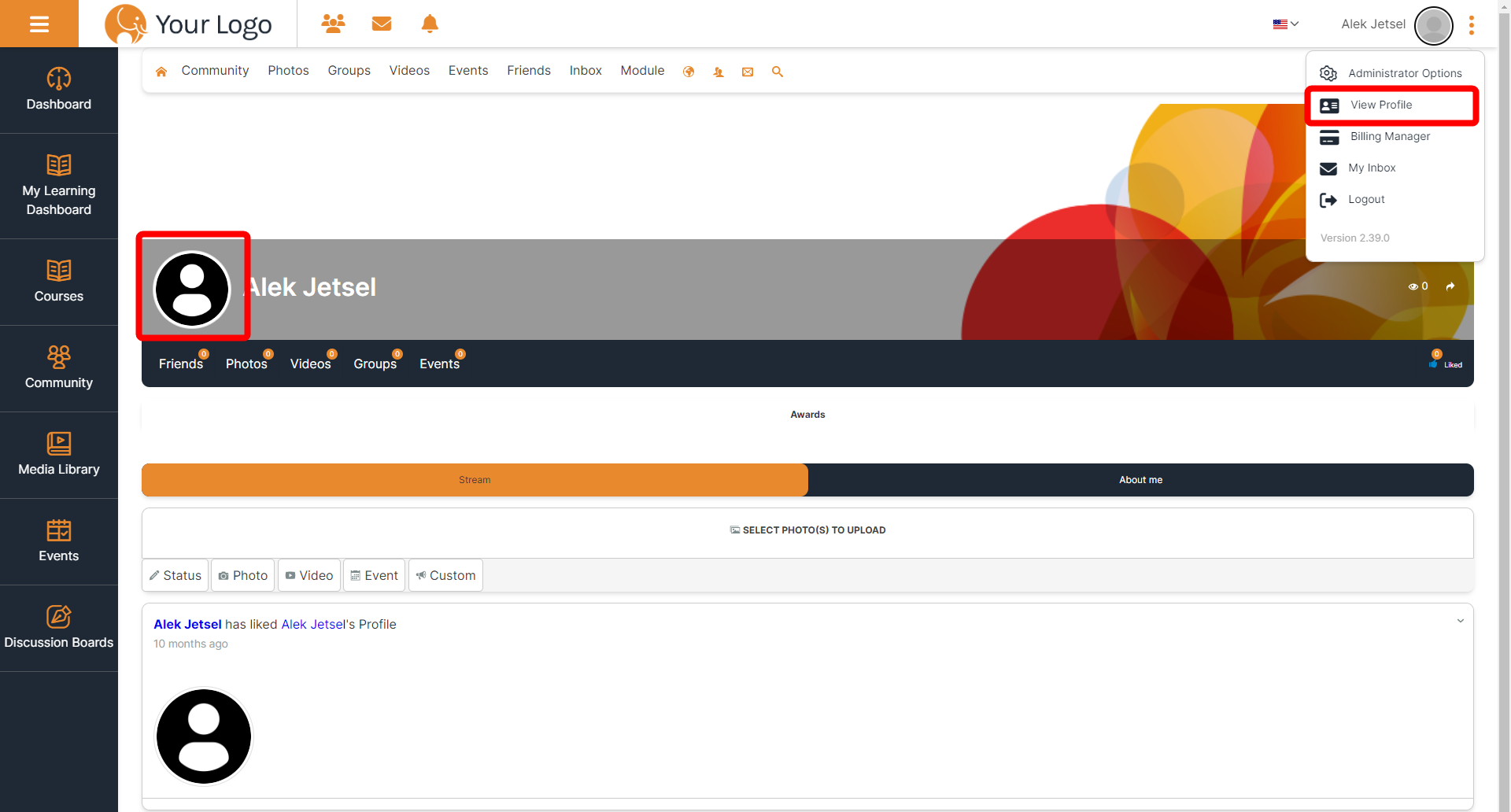

Default Avatar Image
200 x 200
User Portal:

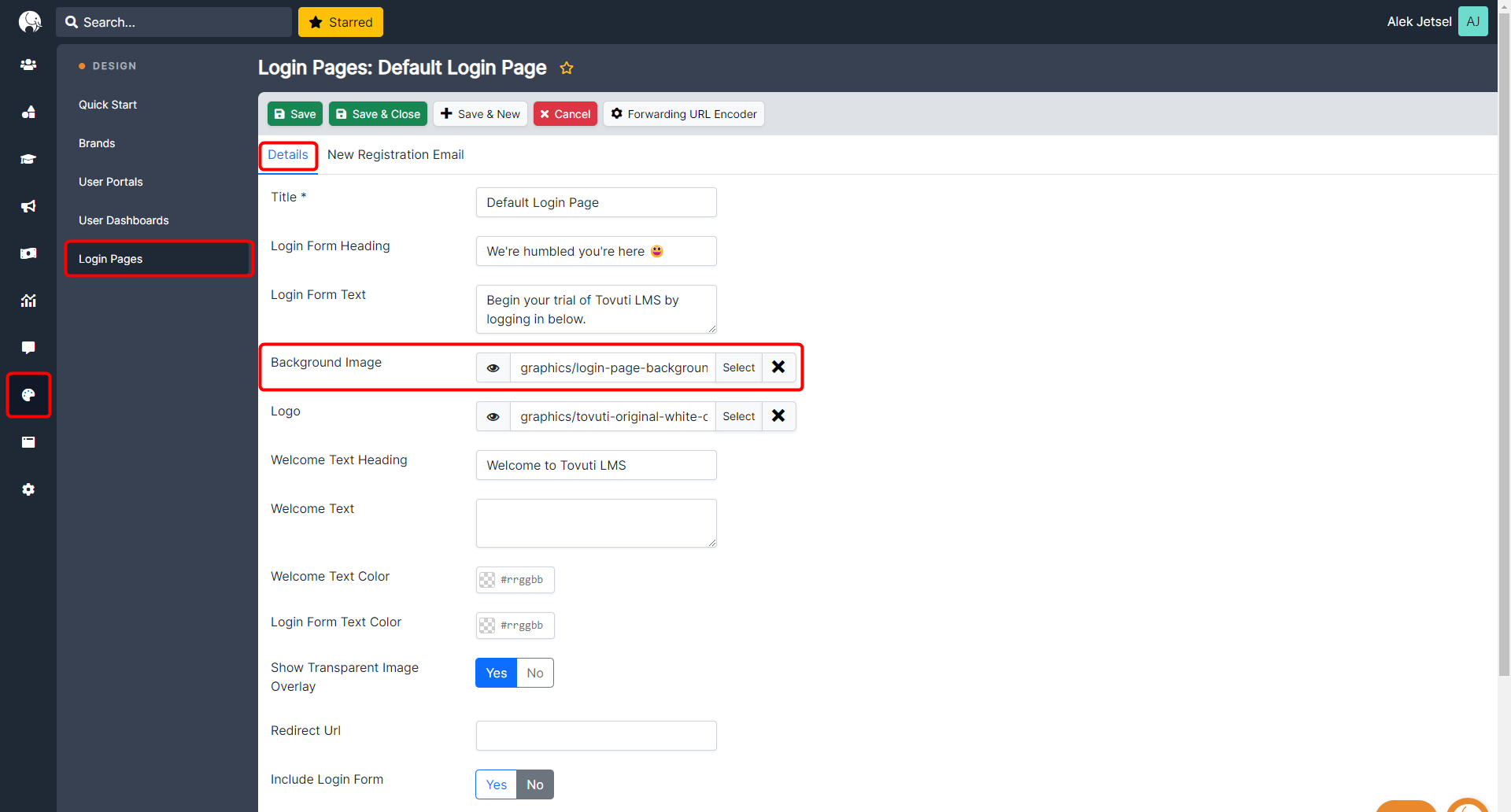

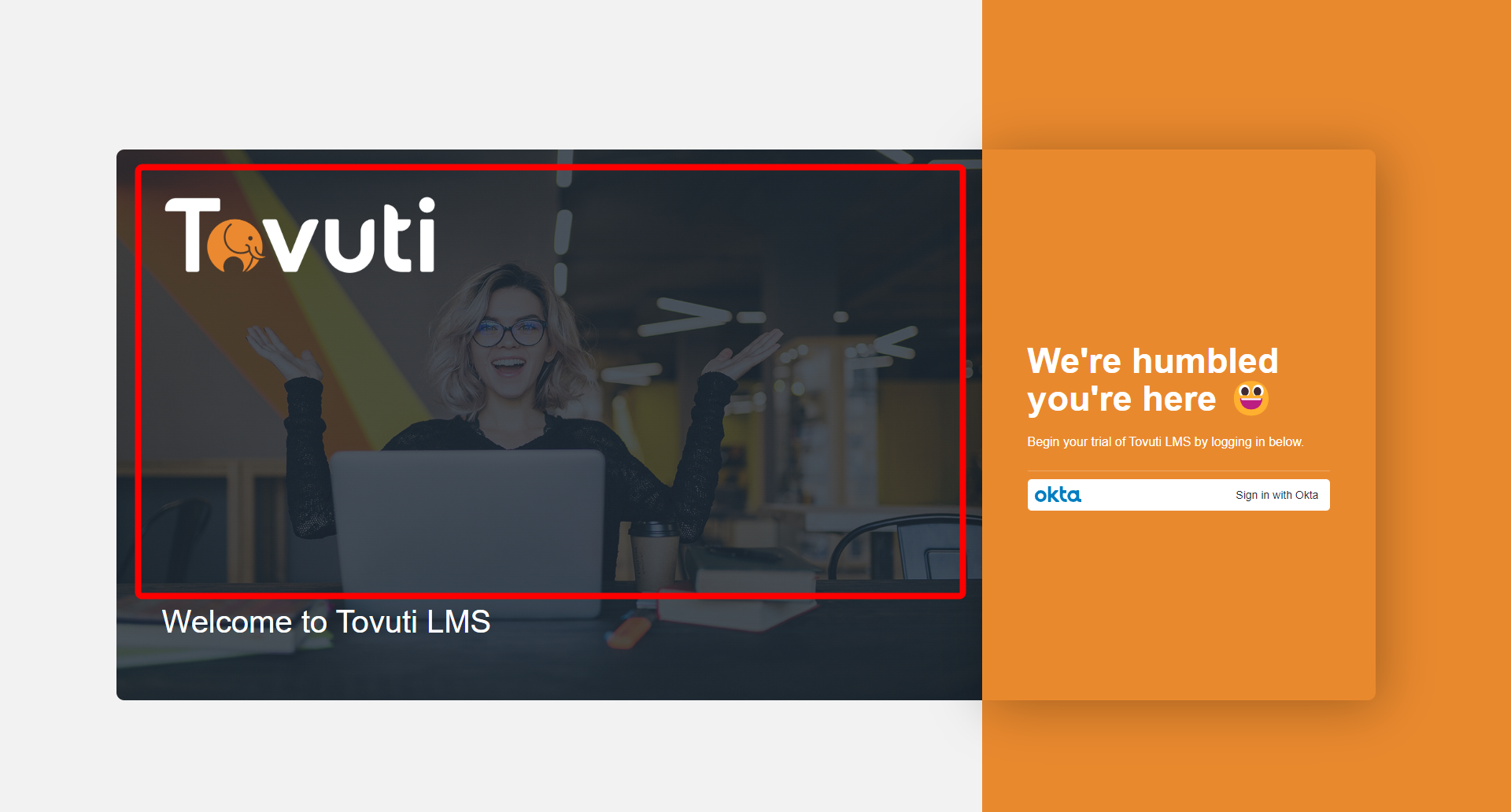

Login Page Background Image
1100 x 700
User Portal:

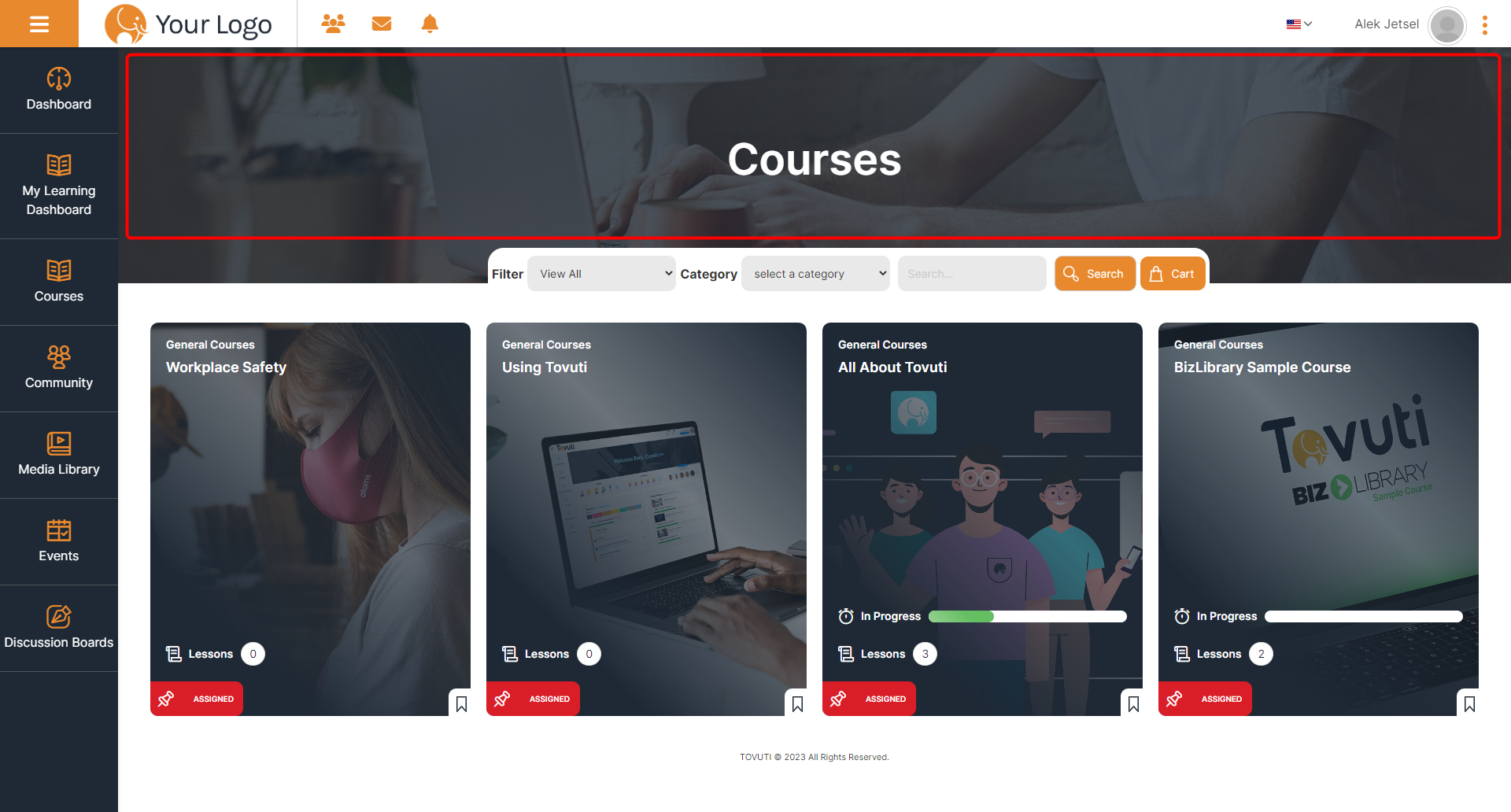

Default Course Category Cover Image
1700 x 300
User Portal:
Default Course Cover Image
1700 x 300
User Portal:

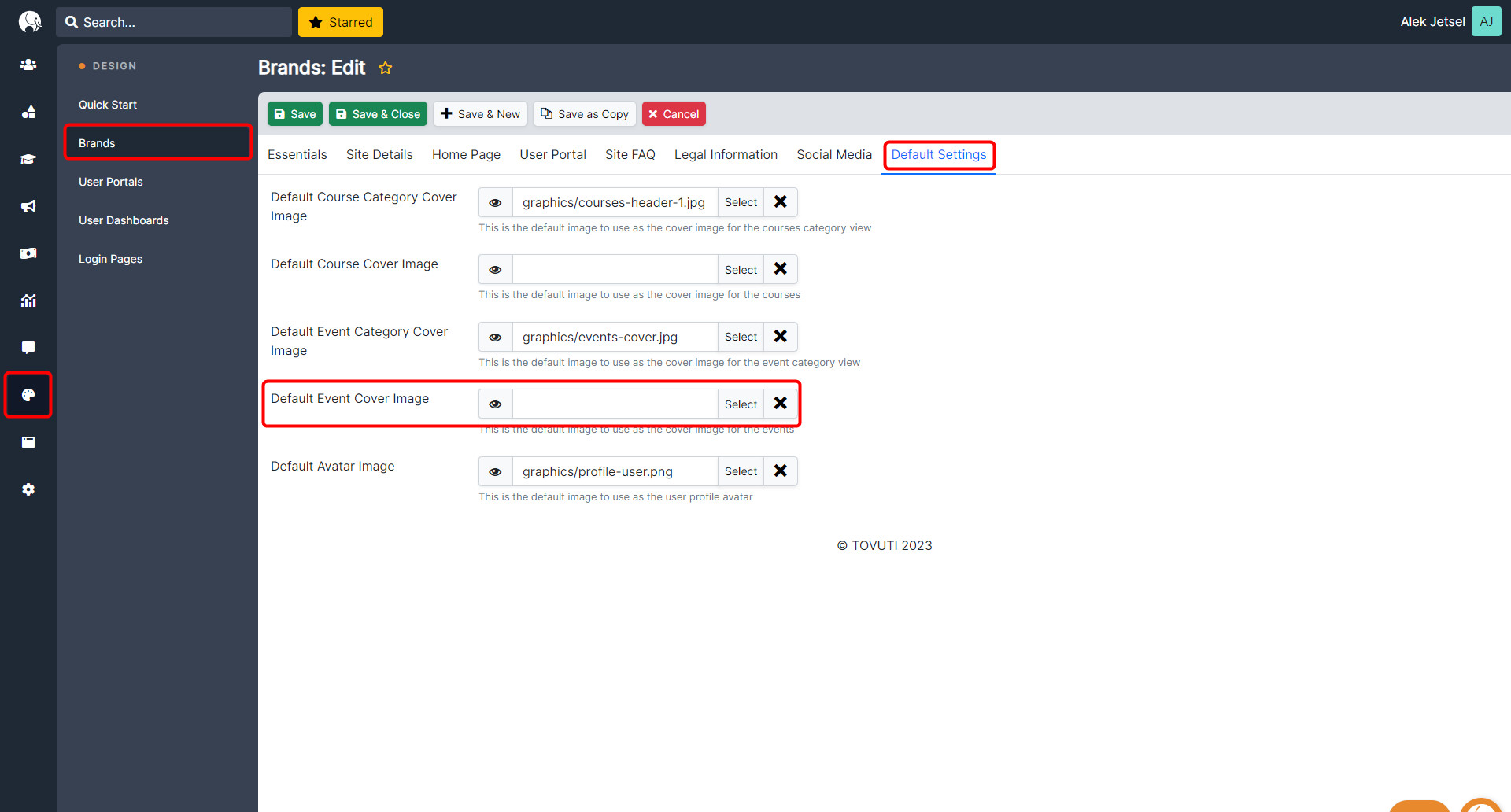

Default Event Cover Image
400 x 200
User Portal:
Content Creation

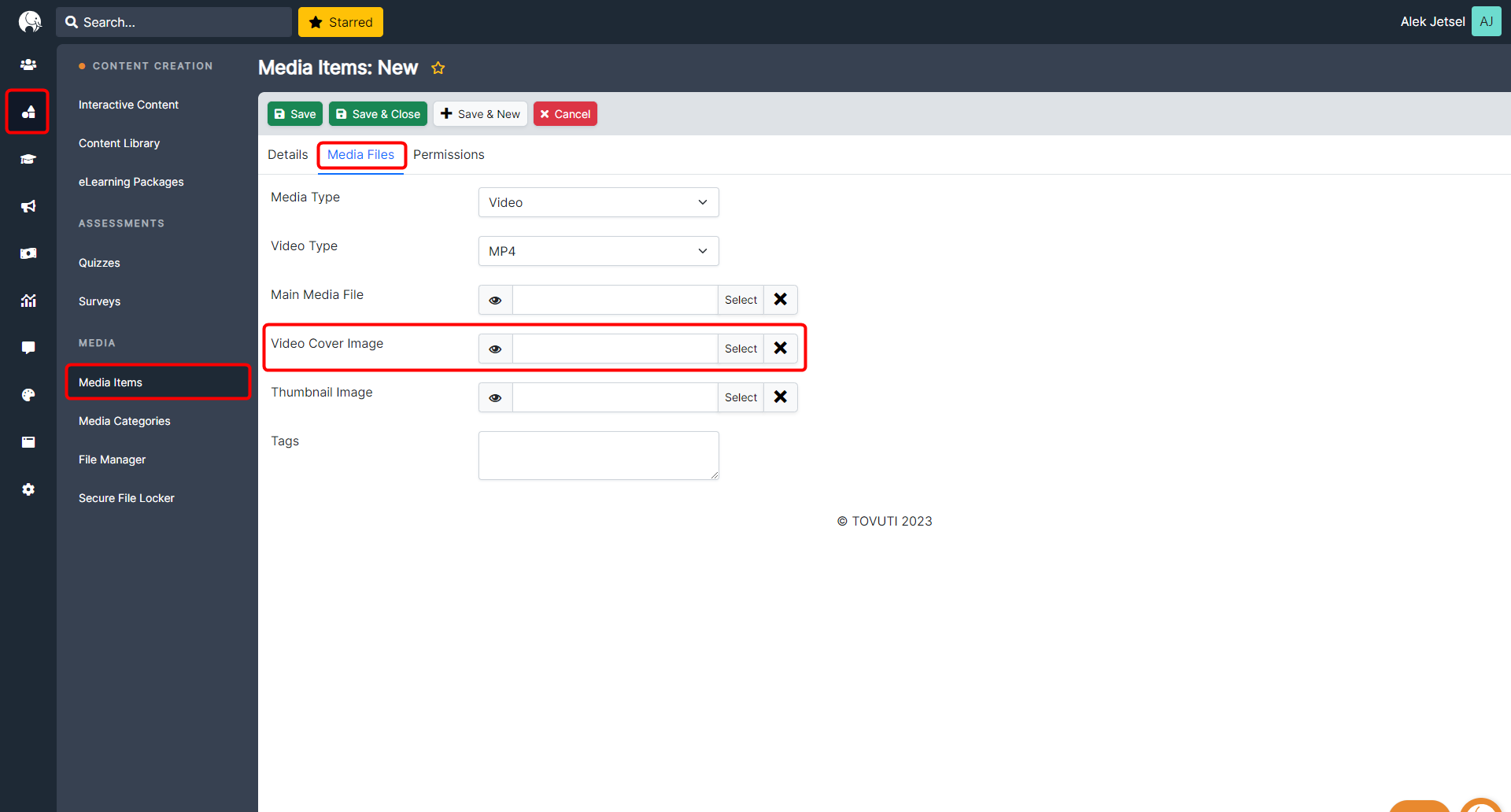

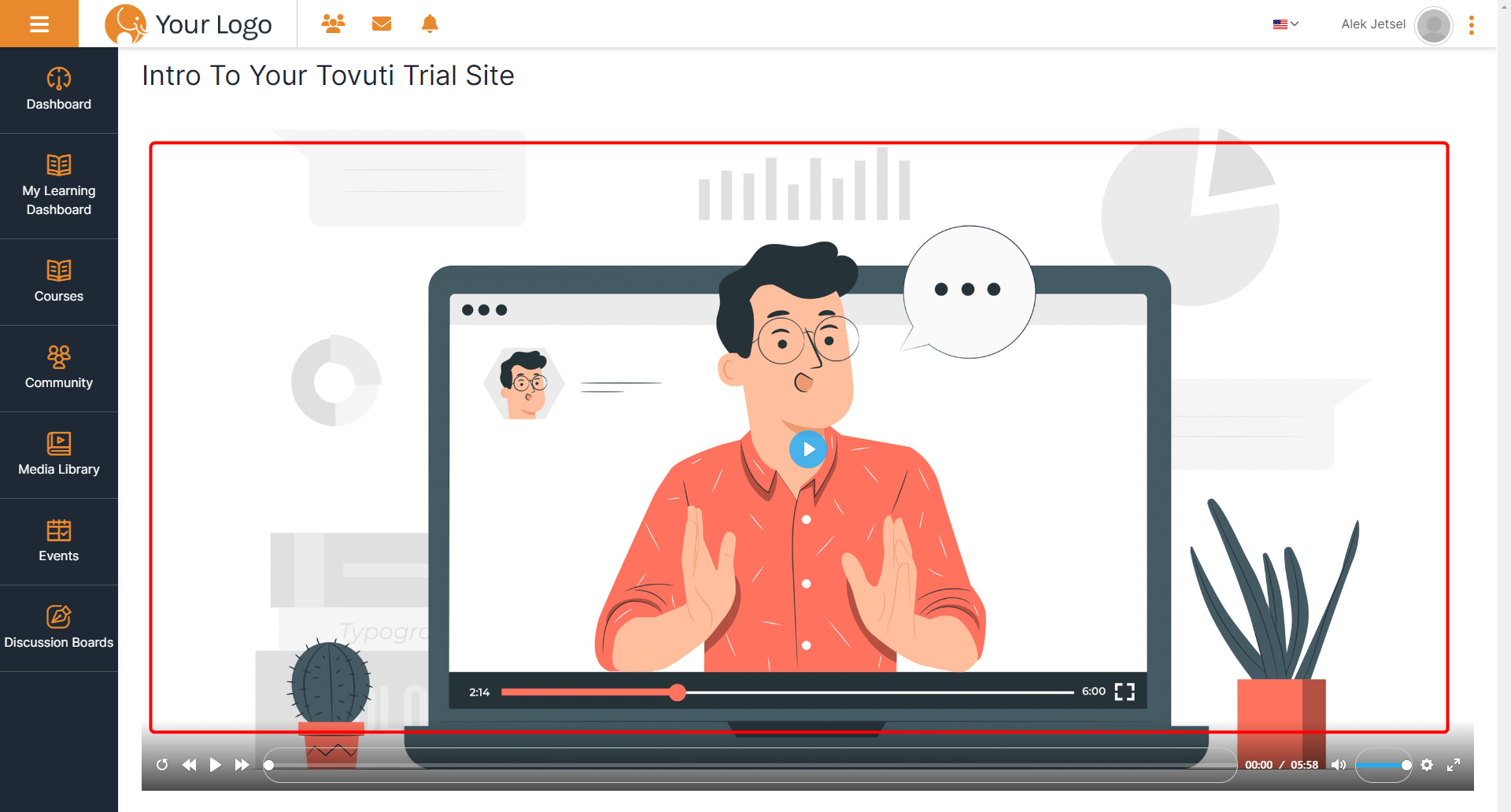

Video Cover Image
1280 x 720
User Portal:

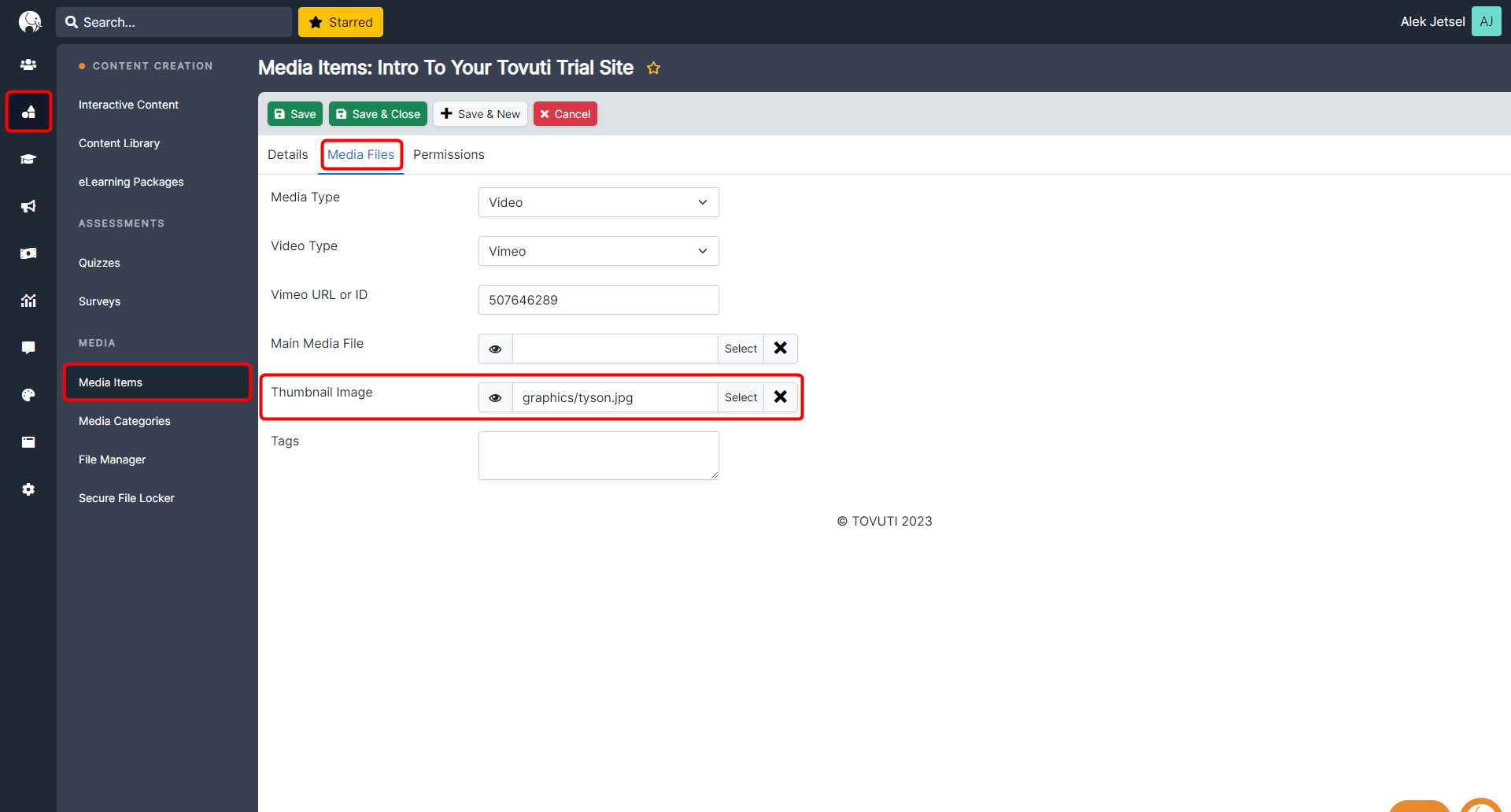

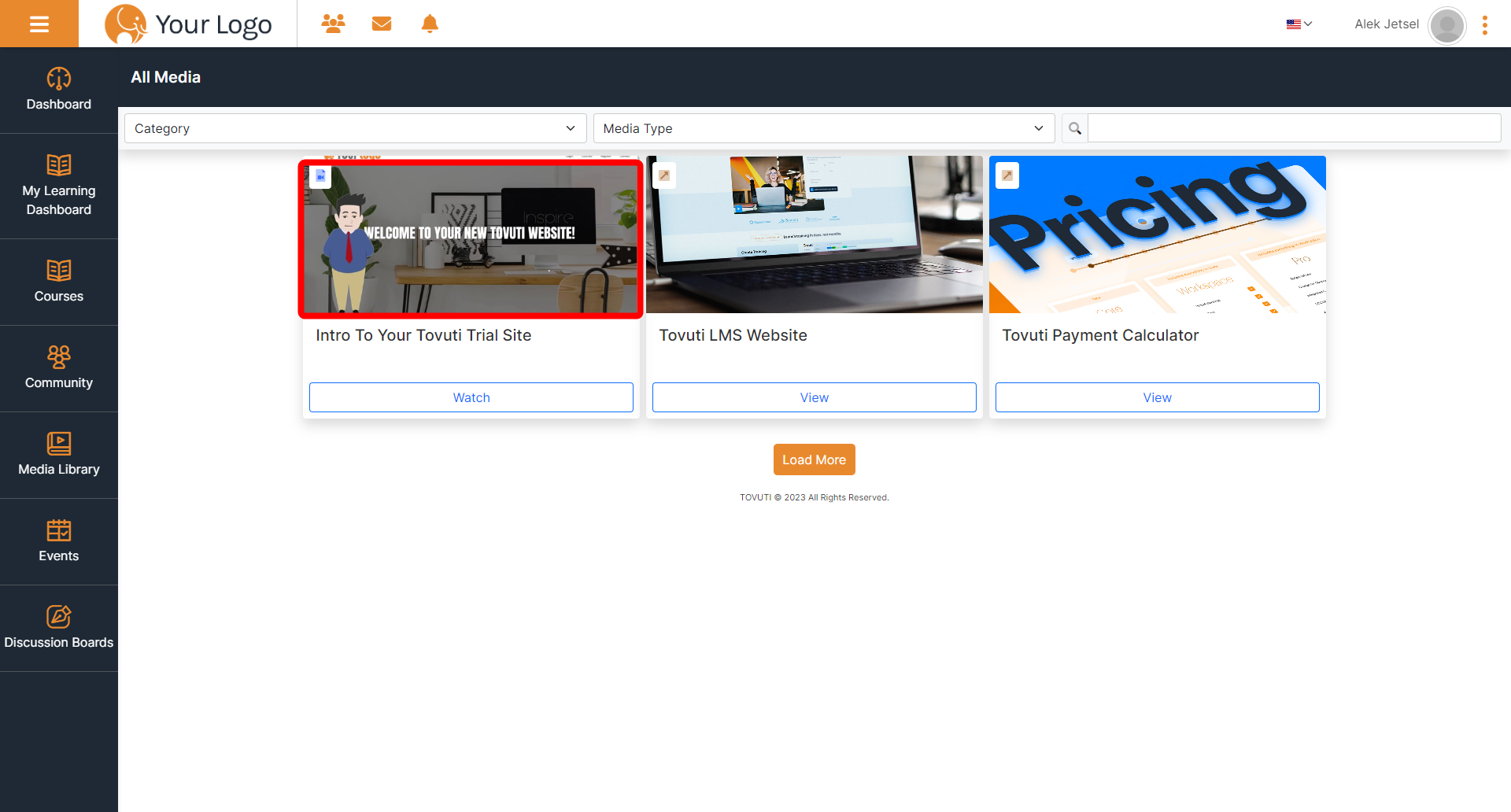

Media Library Thumbnail Image
400 x 200
User Portal:
Learning

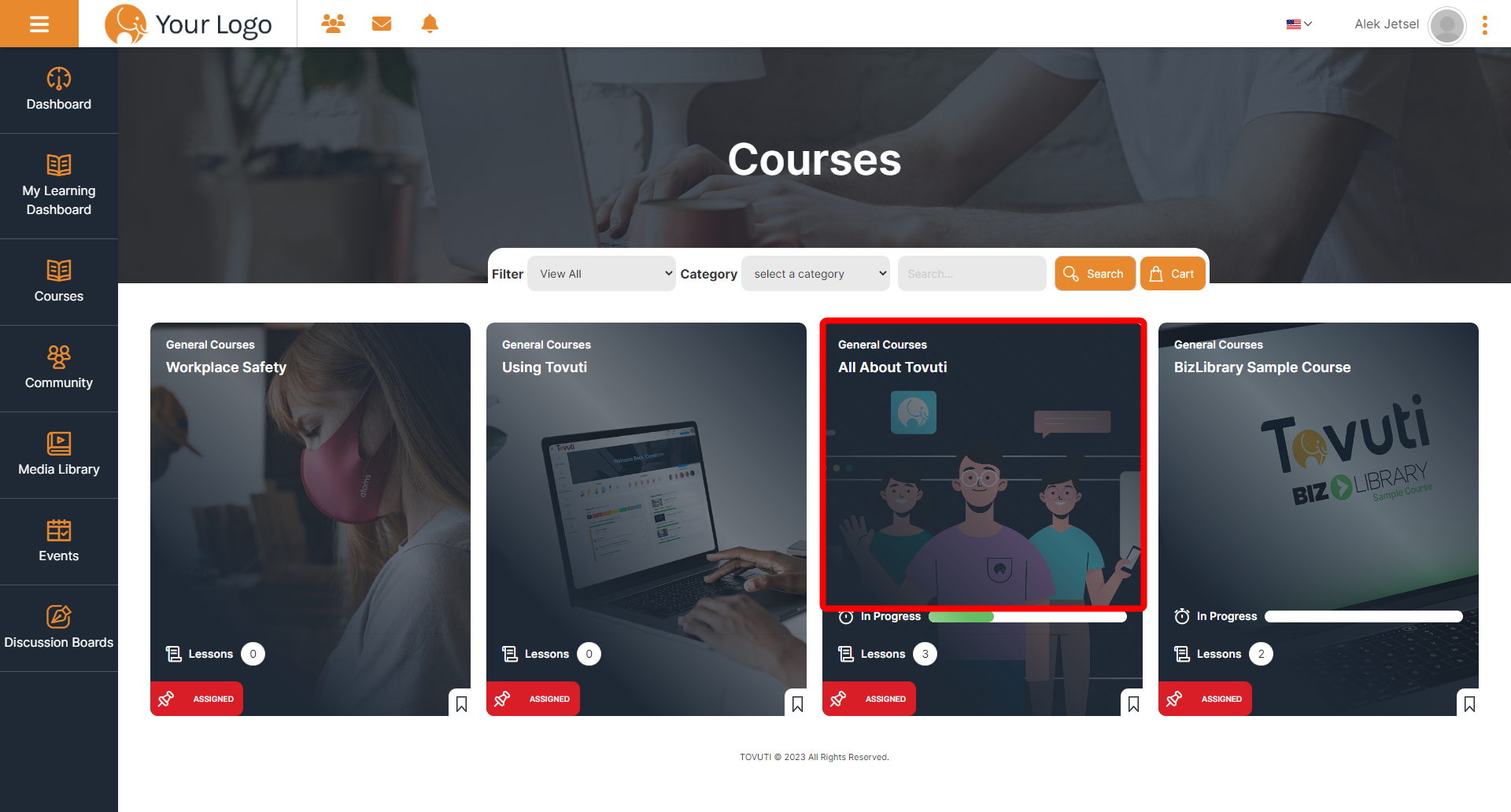

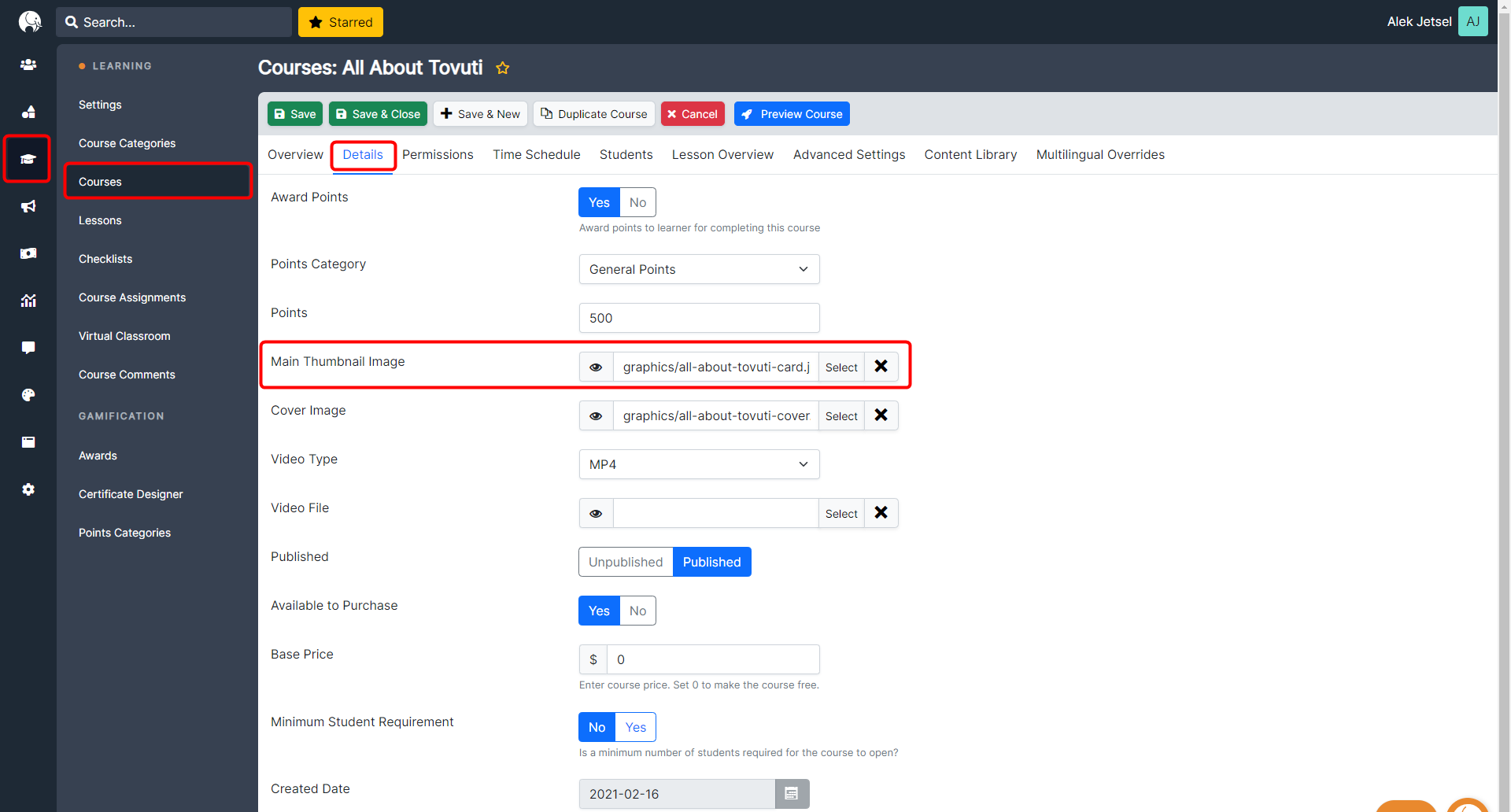

Course Thumbnail Images
350 x 350
User Portal:

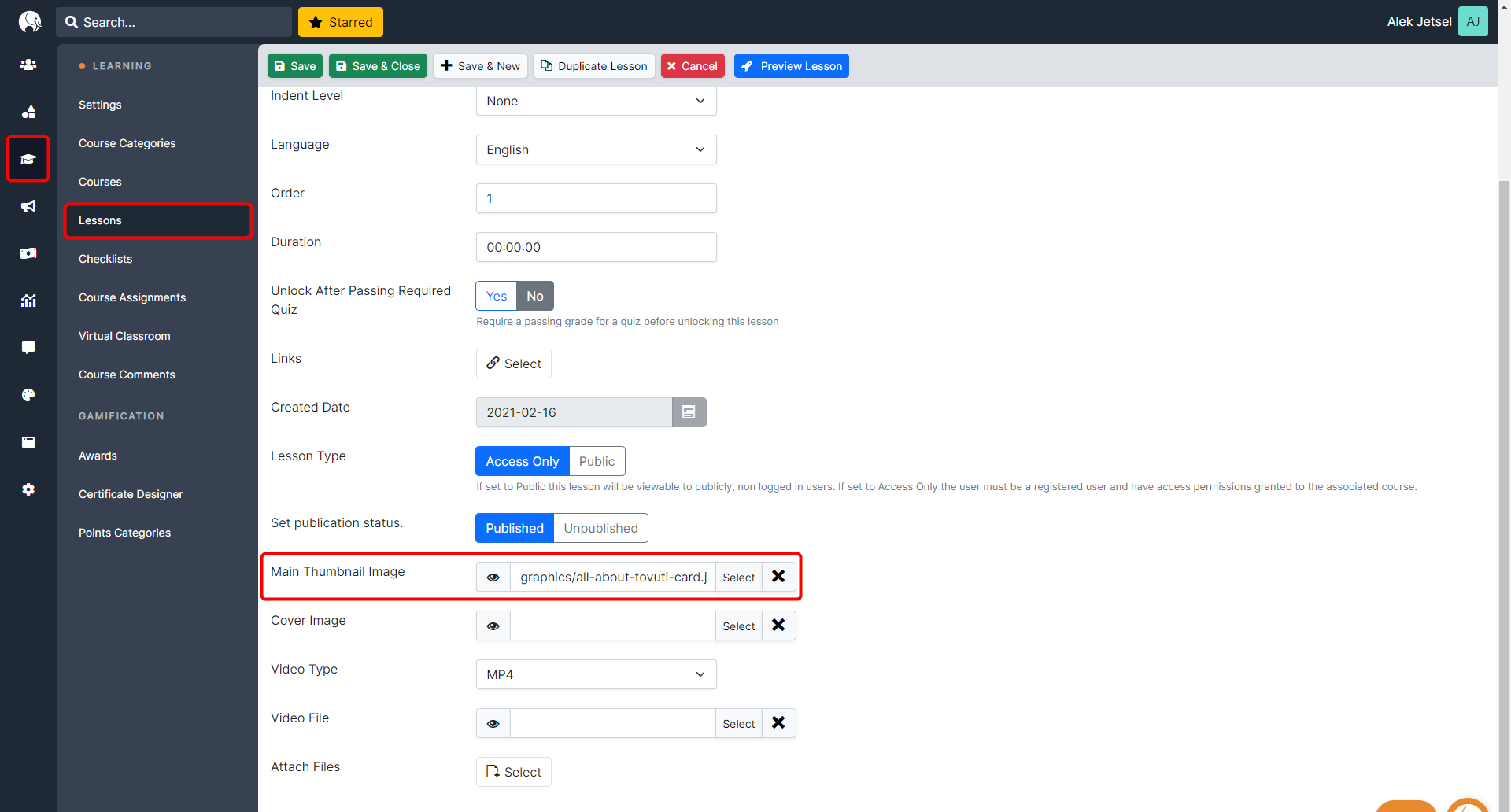

Lesson Thumbnail Image
50 x 50 (Details tab)
User Portal:

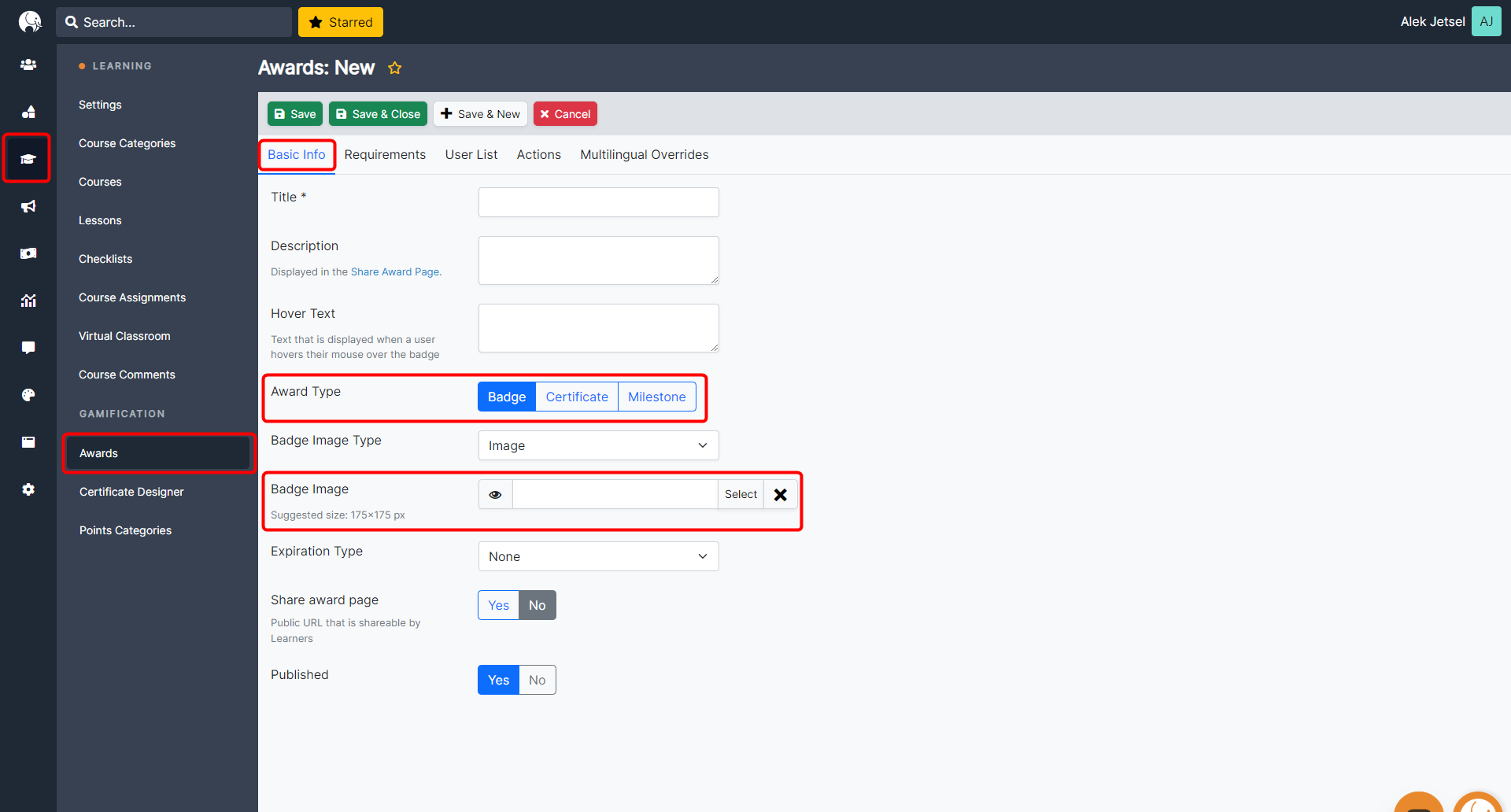

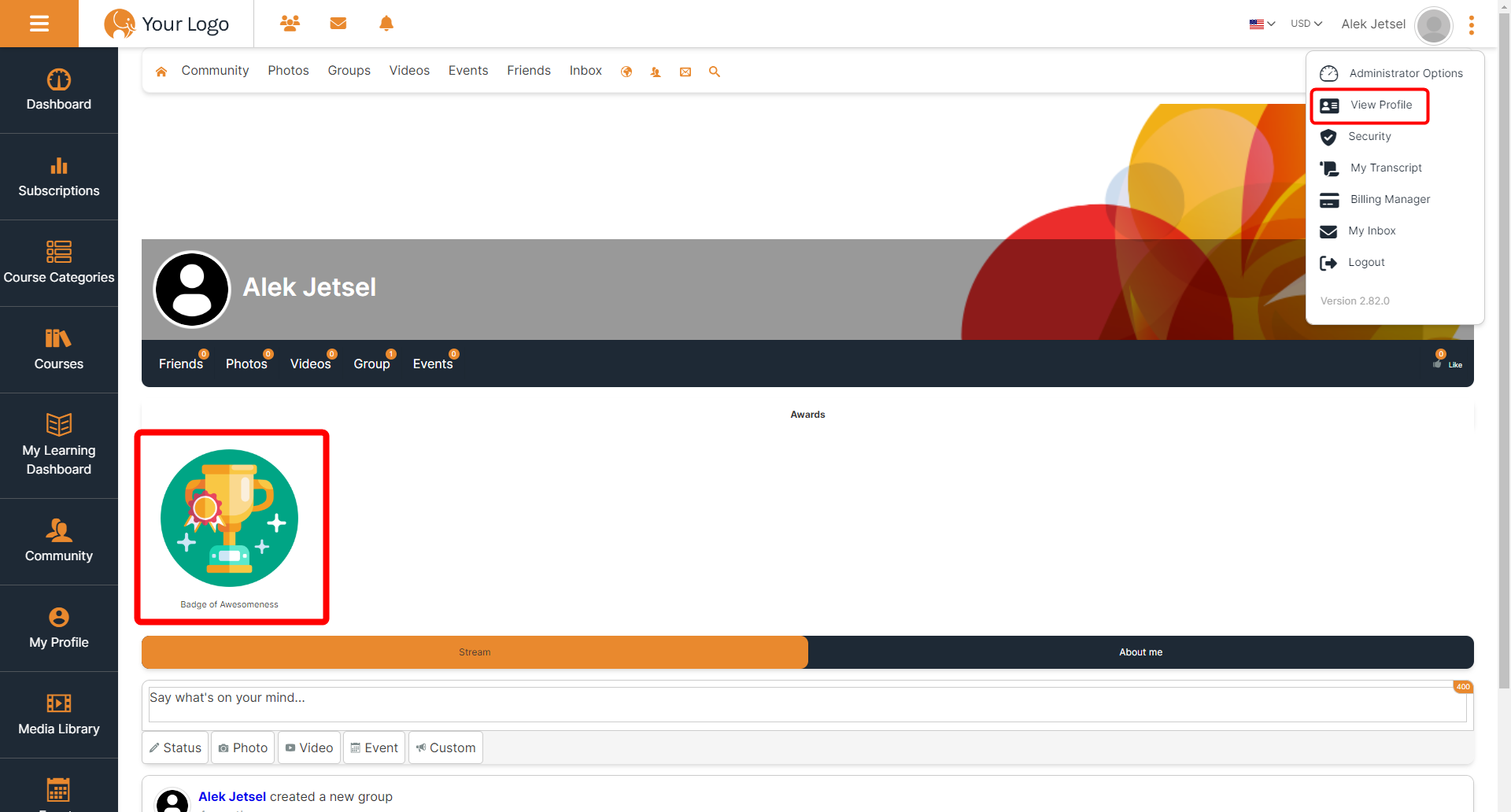

Badge Image
175 x 175 (Basic Info tab)
User Portal:
Social

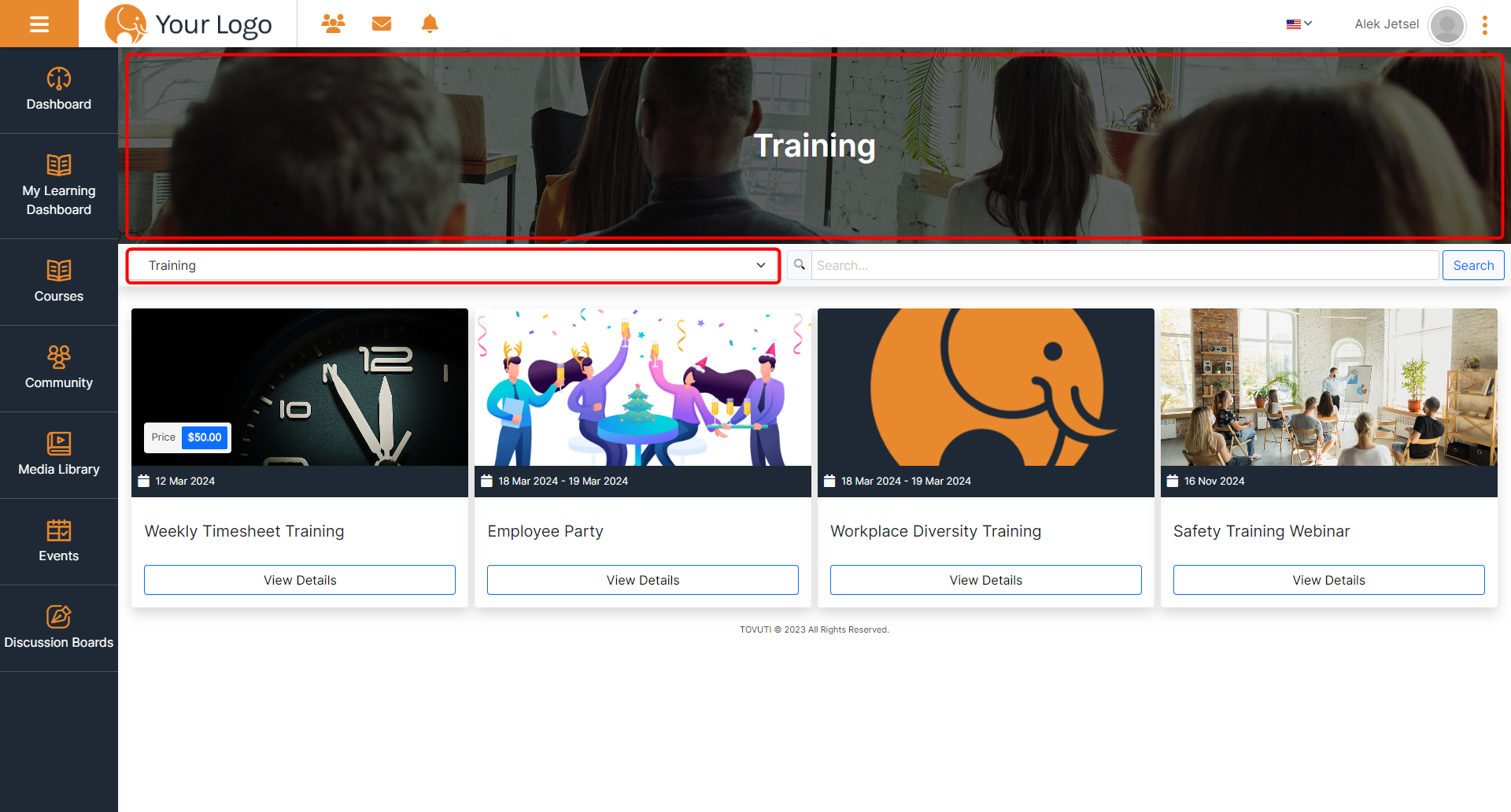

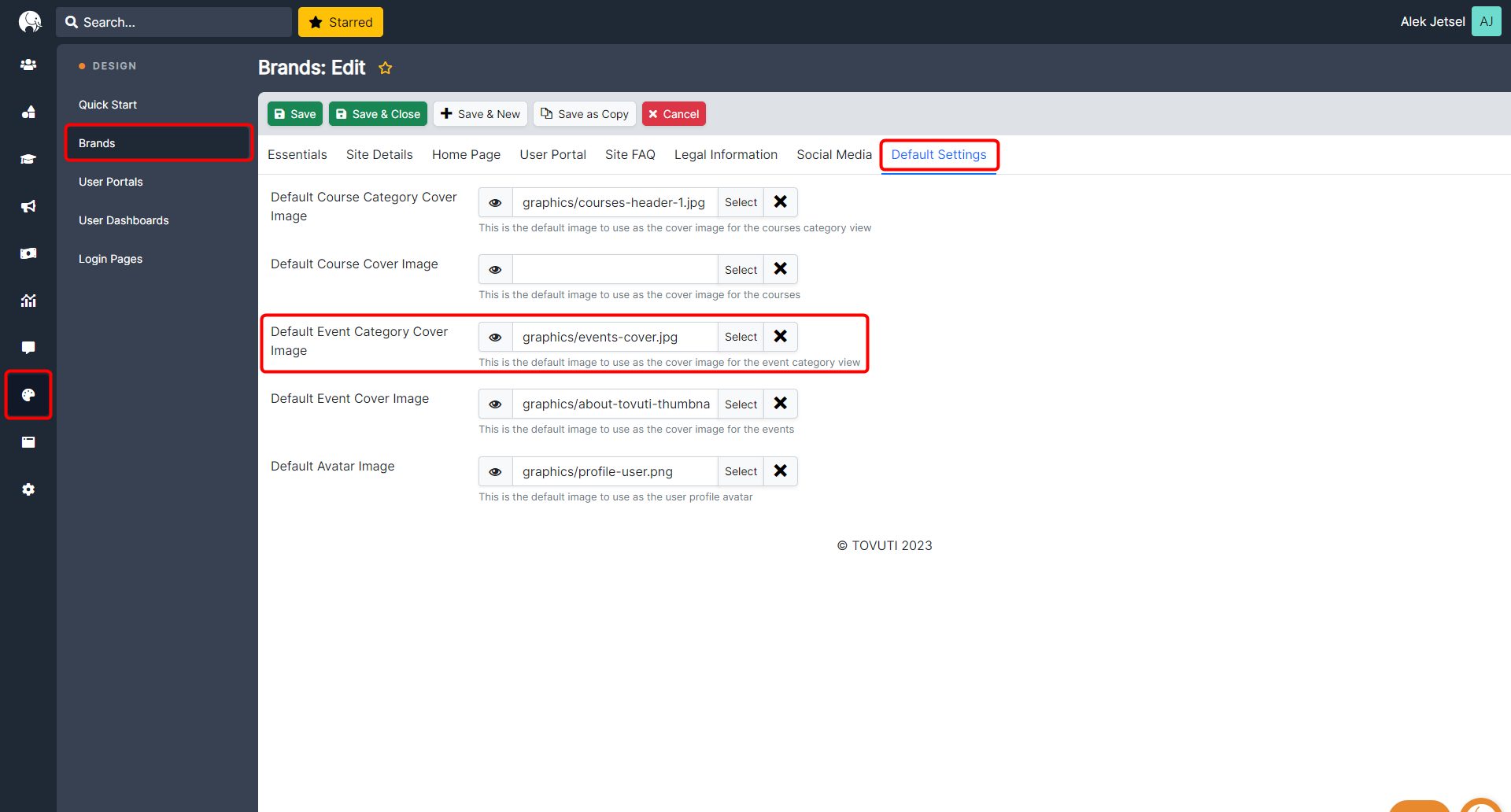

Default Event Category Cover Image
1700 x 300
User Portal:

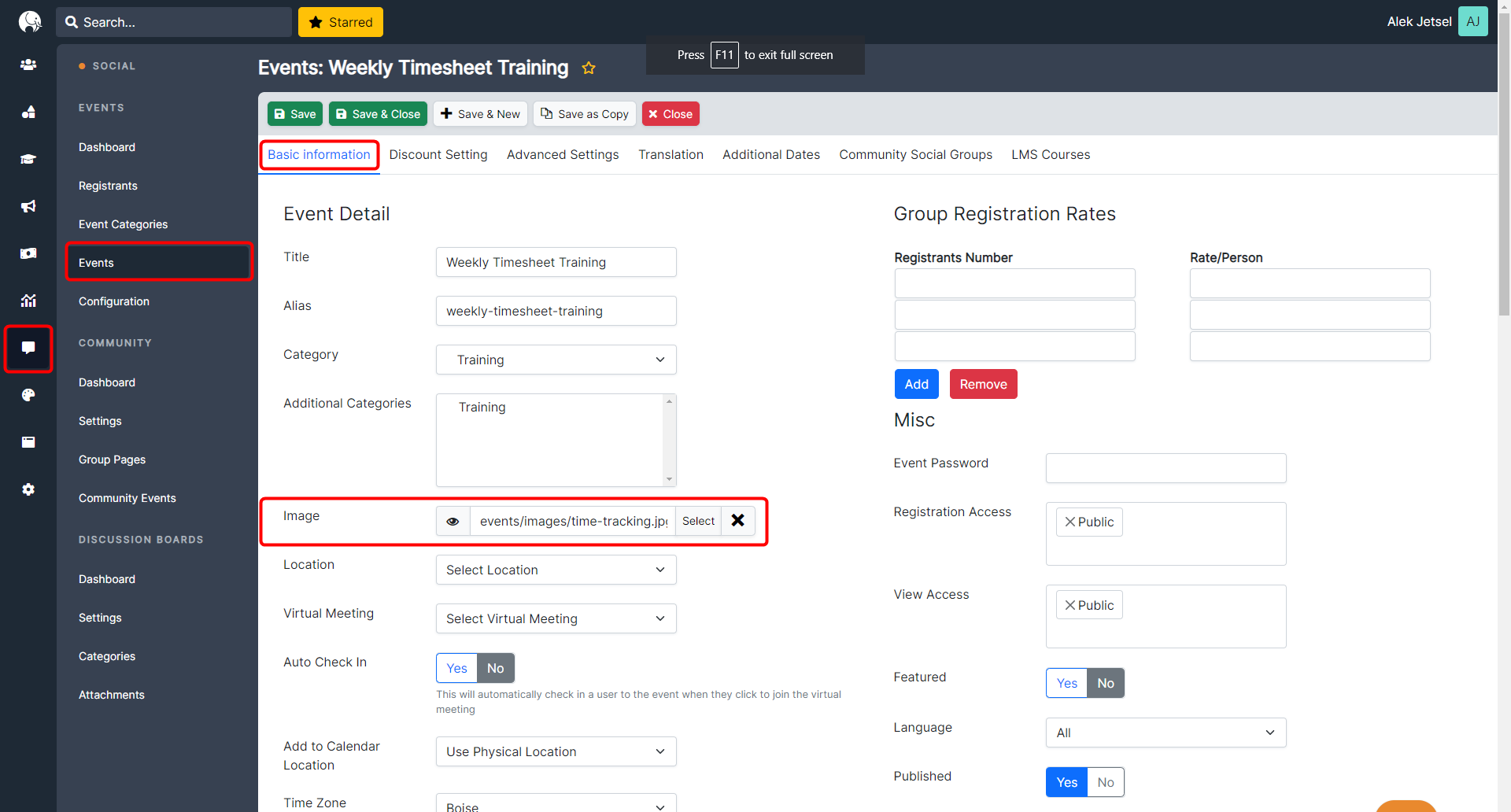

Event Image
400 x 200
User Portal:
Website

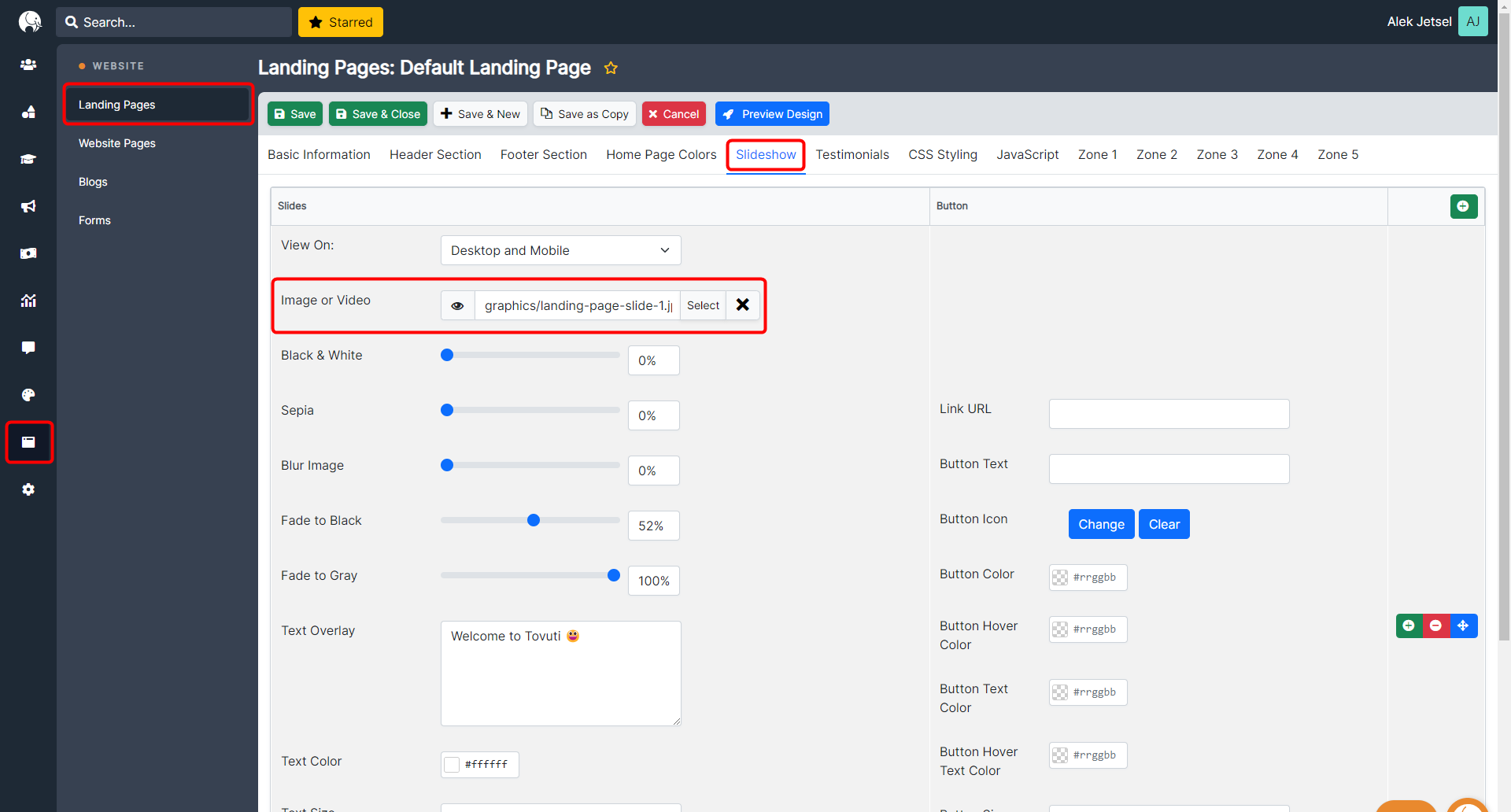

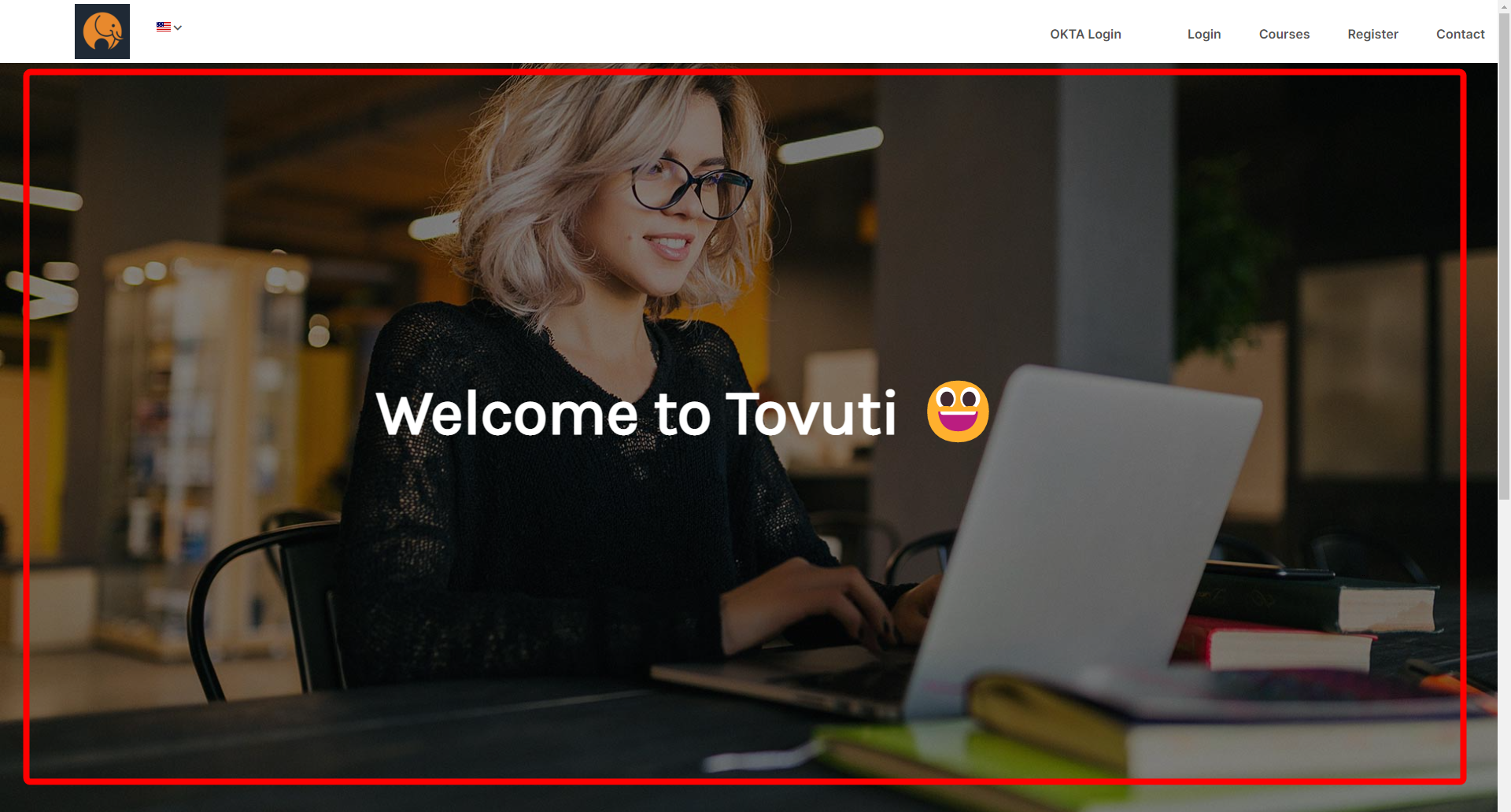

Slideshow Image or Video
1920 x 800
User Portal:
